General
| In The Box |
- 1 Indoor Unit, 1 Outdoor Unit, User Manual, Warranty Card, Remote, Copper Pipe
|
| Brand |
|
| Model Name |
|
| Type |
|
| Capacity in Tons |
|
| Star Rating |
|
| BEE Rating Year |
|
| Color |
|
| Cooling Capacity |
|
| Compressor |
- Patented Swing Compressor
|
| Dehumidification |
|
| Remote Control |
|
| Refrigerant |
|
| Condenser Coil |
|
Dimensions
| Indoor W x H x D |
|
| Indoor Unit Weight |
|
| Outdoor W x H x D |
|
| Outdoor Unit Weight |
|
| Other Dimensions |
- Indoor Package Dimension (H x W x D) (mm): 375 x 980 x 325. Indoor Gross Weight: 13.5 kg. Outdoor Package Dimension (H x W x D) (mm): 680 x 1035 x 410. Outdoor Gross Weight: 35 kg.
|
Air Flow & Filter Features
| Other Air Flow Features |
- Air Throw: 16 m (52 Feet). Airflow Rate (CFM): 572. Airflow Rate (CMM): 16.2.
|
| Anti-bacteria Filter |
|
| Dust Filter |
|
| Other Filter Features |
|
Convenience Features
| Auto Restart |
|
| Other Convenience Features |
- Outdoor Unit Model: RKL50UV16V. Rated Cooling Capacity Full/Half (Min. - Max.) (kW): 5.0/2.5 (1.75 - 5.2). Rated Cooling Capacity Full/Half (Min. - Max.) (Btu/h): 17100/8550 (5970 - 17740). Cooling Capacity at 43 DegreeC: 100%. Voltage Range (Stabilizer Inside): 130 - 285 V. Operating Current: 7.41 A. Panel Color: White. Moisture Removal (l/hr): 1.6. Operation Sound H/MH/M/ML/L/SL (dBA): 46/43/41/38/35/32. Breaker Size: 20 A. Piping Length: Charge-less - 10 m, Max. Length - 20 m, Max. Height - 16 m. Piping Connection Gas / Liquid mm (inch): 12.7 / 6.4 (1/2 / 1/4). Operating Ambient Temperature Range Cooling (Min. - Max.) DegreeC DB: 20 - 52.
|
| Additional Features |
- Stabilizer Inside. Power-airflow Dual Flaps. Triple Display. 3D Airflow. Anti-corrosion Treatment. Automatic Error Code Display. Coanda Airflow. Cools at 52 DegreeC. Dew Clean Technology. Econo Mode. Good Sleep Off Timer. Power Chill Operation. Rated Power Consumption Half (Min. - Max.) (W): 554 (375 - 1750). Rated Annual Power Consumption (kWh): 966.47.
|
Power Features
| Power Requirement |
|
| Annual Electricity Consumption |
|
| Other Power Features |
- Rated Power Supply Phase: 1. Power Supply Intake: Outdoor Unit.
|
Services
| Installation Details |
- Please check the offer details to know about availability of installation facilities and charges. The standard installation charges need to be paid directly to the service engineer. Standard installation of air-conditioners covers only: 1) Drilling of holes into a brick wall for taking out the pipes. 2) Fixing a hole sleeve & cap. 3) Fixing the indoor and outdoor unit. 4) Connecting indoor and outdoor units using the standard Kit provided by the manufacturer (at additional cost
- unless specified otherwise). 5) Wrapping the pipe with seasoning tape. Not covered as part of standard Installation charges are: 1) Outdoor unit stand - Rs. 750-1000. 2) Extra copper wire - Rs. 600-800 per metre. 3) Drain pipe extension
- if any - Rs. 100 per metre. 4) Wiring extension from the meter to the installation site - Rs. 100 per metre. 5) Stabilizer
- if needed
- is chargeable. 6) Plumbing and masonry work. 7) Power-point, MCB fitting and any other electrical work. 8) Carpentry work. 9) Dismantling, shifting of the old AC's masonry - Rs. 1000-1500. 10) Core cutting fabrication and electrical.For Further Details Contact Brand at 011-40319300 / 1860 180 3900
- customerservice@daikinindia.com
|
| Technician Visit Details |
- Authorized Service Engineer will do the following
- Provide replacement to the customer in case part / product not repairable (only after replacement request approved)
- Repair Services
- Repair/change the defective part
|
| Uninstallation Details |
- In case of returns
- Uninstall
- Pick-up the product.
- Flipkart's team will visit the customers location
- Pack
|
Warranty
| Warranty Summary |
- 1 Year Comprehensive Warranty on Product and 10 Years on Compressor
|
| Covered in Warranty |
- Warranty of the Product is Limited to Manufacturing Defects Only.
|
| Not Covered in Warranty |
- Parts: Air Filter or Front Grill is Not Covered in the Warranty. The Warranty Does not Cover Installation or Demonstration. Accessories External to the System. The Product is not Used According to the Instructions Given in the Instruction Manual. Defects Caused by Improper Use as Determined by the Company Personnel. Modification or Alteration of Any Nature is made in the Electrical Circuitry or Physical Construction of the Set. Site (Premises where the Product is Kept) Conditions that Do not Confirm to the Recommended Operating Conditions of the Machine. Defects Due to Cause Beyond Control Like Lightning, Abnormal Voltage, Acts of God, While in Transit to Service Centers or Purchaser's Residence.
|
| Warranty Service Type |
|

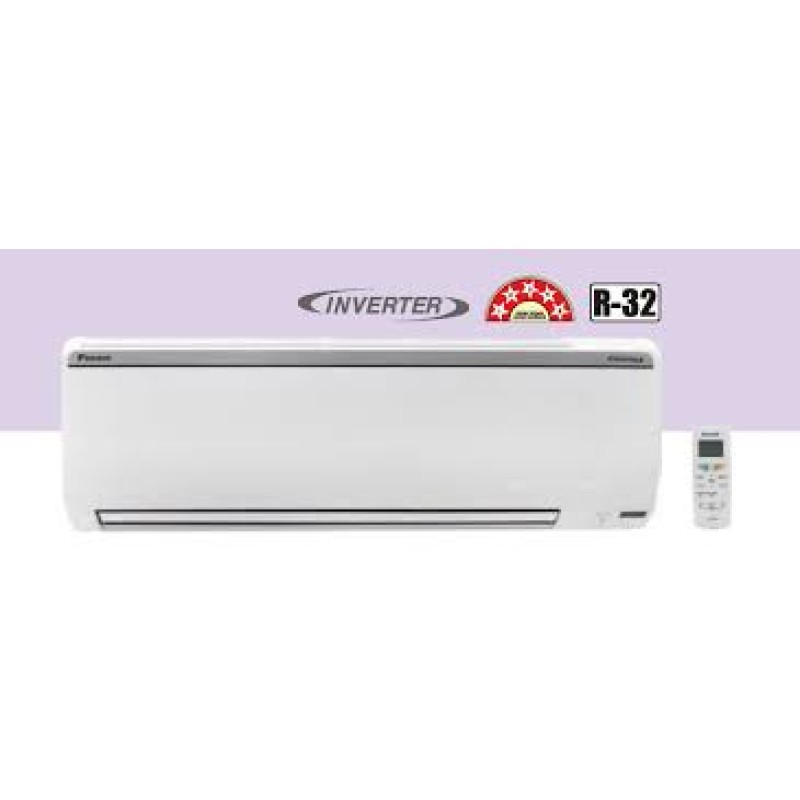

-800x800.jpg "Split AC Daikin 1.5 ton 5* Inverter Ac FTKU50UV16VF")
